Title:

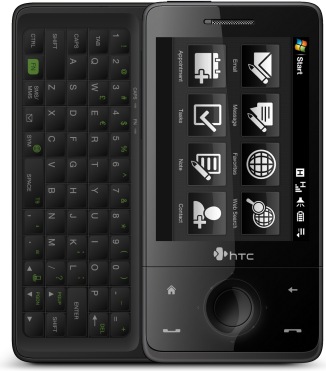

O2 XDA Diamond Pro (HTC Raphael)

Brand:

Manufacturer:

Release-Date:

Dimensions-width-x-height-x-depth:

51 x 102 x 18.05 millimetres

Bounding-Volume:

Mass:

165 grams (battery included)

Embedded-Operating-System:

Microsoft Windows Mobile 6.1 Professional

Operating-System-Kernel:

CPU:

32bit Qualcomm MSM7201A

CPU-Clock:

528 MHz

Databus-Width:

CPU-Core:

Number-of-Transistors:

Level-1-cache:

Instruction-set:

ROM-capacity:

512 MiB

RAM-type:

RAM-capacity:

288 MiB

Expansion-Slots:

microSD, microSDHC, TransFlash, SDIO

Display:

color transflective TFT , 65536 scales

Color-Depth:

Resolution:

480 x 640

Diagonal:

2.8 `

Viewable-size:

Dot-Pitch:

Graphical-Controller:

D-A-converter:

Audio-Input:

Number-of-speakers:

Audio-Output:

Proprietary

Supported-Cellular-Networks:

GSM900, GSM1800, GSM1900, UMTS900, UMTS2100

Supported-Data-Standards:

Ring:

UART:

Universal-Serial-Bus:

USB 2.0 client, 480Mbit/smini-USB

Infrared-Gate:

Not supported

Bluetooth:

Bluetooth 2.0 + EDR

LAN:

Wireless-LAN:

802.11b, 802.11g

Modem:

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

Directional-Pad:

5 -way

Battery:

removable

Battery-Capacity:

1350 mAh

Avarege-Current:

Estimated-Battery-Life:

Additional-Features:

Related-Page:

views:

700

date added:

Jul 02, 2008
