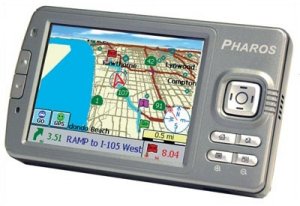

Pharos Traveler GPS 505

add to favorites

search for

details:

» home » Pharos » Pharos Traveler GPS 505

Title:

Pharos Traveler GPS 505

Brand:

Pharos

Manufacturer:

Release-Date:

January, 2006

Dimensions-width-x-height-x-depth:

121 x 71.5 x 17 millimetres
4.8 x 2.8 x 0.7 inches

Bounding-Volume:

147.1 cubecentimetres

Mass:

190 grams (battery included)

Embedded-Operating-System:

Microsoft Windows Mobile 2003 Second Edition for Pocket PC Professional Edition (Ozone Update)

Operating-System-Kernel:

Microsoft Windows CE 4.21.1088

CPU:

Intel XScale PXA270

CPU-Clock:

416MHz

Databus-Width:

32bit

CPU-Core:

Intel XScale

Number-of-Transistors:

Level-1-cache:

32KB data cache / 32KB instruction cache

Instruction-set:

ARM v5TE

ROM-capacity:

64MB

RAM-type:

SDRAM

RAM-capacity:

64MB

Expansion-Slots:

MMC, SD, SDIO

Display:

color transflective TFT

Color-Depth:

16bit/pixel (65536 scales)

Resolution:

320 x 240 (76800 pixel)

Diagonal:

3.5` (89 millimetres)

Viewable-size:

2.8` x 2.1` (71.2 x 53.4 millimetres)

Dot-Pitch:

0.2225 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

3.5mm, stereo

Supported-Cellular-Networks:

Supported-Data-Standards:

Ring:

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sUSB Series Mini-B (mini-USB) connector

Infrared-Gate:

IrDA 1.2115200bit/s (SIR/CIR)

Bluetooth:

Not supported

LAN:

Not supported

Wireless-LAN:

Not supported

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

Not supported

Directional-Pad:

5-way directional block

Battery:

Lithium-ion, removable

Battery-Capacity:

1100mAh

Avarege-Current:

138 mA

Estimated-Battery-Life:

8 hours

Additional-Features:

integrated 20 -channel SiRFStar III GPS reciever mini-USB connector
