Title:

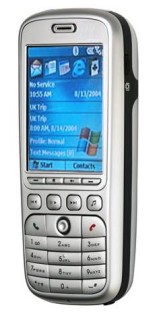

Qtek 8200 (HTC Hurricane)

Brand:

Qtek

Manufacturer:

High Tech Computer

Release-Date:

September, 2005

Dimensions-width-x-height-x-depth:

46 x 108 x 17.5 millimetres
1.8 x 4.3 x 0.7 inches

Bounding-Volume:

86.9 cubecentimetres

Mass:

107 grams (battery included)

Embedded-Operating-System:

Microsoft Windows Mobile 2003 Second Edition for Smartphone

Operating-System-Kernel:

Microsoft Windows CE 4.21.1088

CPU:

Texas Instruments OMAP 730

CPU-Clock:

220MHz

Databus-Width:

32bit

CPU-Core:

ARM926EJ-S

Number-of-Transistors:

Level-1-cache:

8KB data cache / 16KB instruction cache

Instruction-set:

ARM v5

ROM-capacity:

64MB, including 26.97MB user-accessible non-volatile memory

RAM-type:

SDRAM

RAM-capacity:

64MB (accessible: 51.61MB)

Expansion-Slots:

miniSD, SDIO

Display:

color transflective TFT

Color-Depth:

18bit/pixel (262144 scales)

Resolution:

240 x 320 (76800 pixel)

Diagonal:

2.2` (55.4 millimetres)

Viewable-size:

1.3` x 1.7` (33.24 x 44.32 millimetres)

Dot-Pitch:

0.1385 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

2.5mm, stereo

Supported-Cellular-Networks:

GSM 900MHz, GSM 1800MHz, GSM 1900MHz

Supported-Data-Standards:

CSD, GPRS

Ring:

40-chord melody (polyphonic)

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sUSB Series Mini-B (mini-USB) connector

Infrared-Gate:

IrDA 1.2115200bit/s (SIR/CIR)

Bluetooth:

Bluetooth 1.2

LAN:

Not supported

Wireless-LAN:

Not supported

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

alphanumeric phone keyboard, 12 keys

Directional-Pad:

5-way directional block

Battery:

Lithium-ion, removable

Battery-Capacity:

1150mAh

Avarege-Current:

96 mA

Estimated-Battery-Life:

12 hours

Additional-Features:

GPRS Class 10 40 tone polyphonic (MIDI) ringtone hands-free built-in antenna vibrating call alert mini-USB connector

Related-Page:

http://www.qtek.fi/qtek8200.htm...
