Title:

T-Mobile SDA US (HTC Tornado Tempo)

Brand:

T-Mobile

Manufacturer:

High Tech Computer

Release-Date:

February, 2006

Dimensions-width-x-height-x-depth:

46.2 x 116 x 17.5 millimetres
1.8 x 4.6 x 0.7 inches

Bounding-Volume:

93.8 cubecentimetres

Mass:

107 grams (battery included)

Embedded-Operating-System:

Microsoft Windows Mobile 5.0 for Smartphone

Operating-System-Kernel:

Microsoft Windows CE 5.1.70

CPU:

Texas Instruments OMAP 850

CPU-Clock:

195MHz

Databus-Width:

32bit

CPU-Core:

ARM926EJ-S

Number-of-Transistors:

Level-1-cache:

8KB data cache / 16KB instruction cache

Instruction-set:

ARM v5

ROM-capacity:

64MB, including 17.94MB user-accessible non-volatile memory

RAM-type:

SDRAM

RAM-capacity:

64MB (accessible: 45.05MB)

Expansion-Slots:

miniSD, SDIO

Display:

color transflective TFT

Color-Depth:

16bit/pixel (65536 scales)

Resolution:

240 x 320 (76800 pixel)

Diagonal:

2.2` (57 millimetres)

Viewable-size:

1.3` x 1.8` (34.2 x 45.6 millimetres)

Dot-Pitch:

0.1425 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

2.5mm, stereo

Supported-Cellular-Networks:

GSM 850MHz, GSM 900MHz, GSM 1800MHz, GSM 1900MHz

Supported-Data-Standards:

CSD, GPRS, EDGE

Ring:

40-chord melody (polyphonic)

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sUSB Series Mini-B (mini-USB) connector

Infrared-Gate:

IrDA 1.2115200bit/s (SIR/CIR)

Bluetooth:

Bluetooth 1.2

LAN:

Not supported

Wireless-LAN:

802.11b11Mbit/s

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Not supported

Keyboard:

alphanumeric phone keyboard, 12 keys

Directional-Pad:

5-way directional block

Battery:

Lithium-ion, removable

Battery-Capacity:

1150mAh

Avarege-Current:

82 mA

Estimated-Battery-Life:

14 hours

Additional-Features:

GPRS Class 10 40 tone polyphonic (MIDI) ringtone 4 dedicated multimedia control button hands-free built-in antenna vibrating call alert mini-USB connector

views:

5395

date added:

Dec 06, 2006

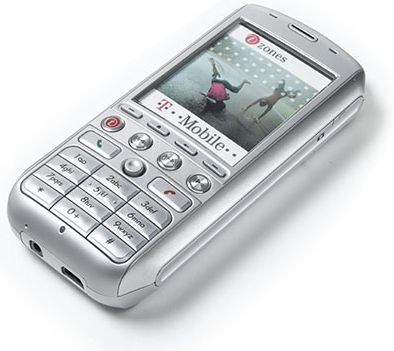

Click here to Download the T-Mobile SDA US (HTC Tornado Tempo) image
