Title:

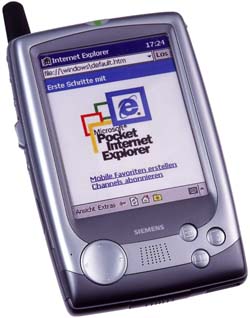

Siemens SX45

Brand:

Siemens

Manufacturer:

Casio Computer

Release-Date:

September, 2001

Dimensions-width-x-height-x-depth:

87 x 134.4 x 26.5 millimetres
3.4 x 5.3 x 1 inches

Bounding-Volume:

309.9 cubecentimetres

Mass:

295 grams (battery included)

Embedded-Operating-System:

Microsoft Pocket PC 2000 (Rapier)

Operating-System-Kernel:

Microsoft Windows CE 3.0.9348 Build 9616

CPU:

NEC VR4122

CPU-Clock:

150MHz

Databus-Width:

64bit

CPU-Core:

MIPS R4400 (NEC VR4121)

Number-of-Transistors:

2300000

Level-1-cache:

16KB data cache / 32KB instruction cache

Instruction-set:

MIPS I, MIPS II, MIPS III, MIPS16

ROM-capacity:

16MB

RAM-type:

SDRAM

RAM-capacity:

32MB

Expansion-Slots:

CF I., CF II., MMC, SD

Display:

color transflective TFT

Color-Depth:

16bit/pixel (65536 scales)

Resolution:

240 x 320 (76800 pixel)

Diagonal:

3.5` (89 millimetres)

Viewable-size:

2.1` x 2.8` (53.4 x 71.2 millimetres)

Dot-Pitch:

0.2225 millimetre/pixel

Graphical-Controller:

NEC MIPS R4000 LCD-vezérlõ

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

3.5mm, stereo

Supported-Cellular-Networks:

GSM 900MHz, GSM 1800MHz

Supported-Data-Standards:

CSD

Ring:

1-chord melody (monophonic)

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sProprietary connector

Infrared-Gate:

IrDA 1.14Mbit/s (FIR)

Bluetooth:

Not supported

LAN:

Not supported

Wireless-LAN:

Not supported

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

Not supported

Directional-Pad:

4-way directional block

Battery:

Lithium-ion, removable

Battery-Capacity:

1550mAh

Avarege-Current:

129 mA

Estimated-Battery-Life:

12 hours

Additional-Features:
