Title:

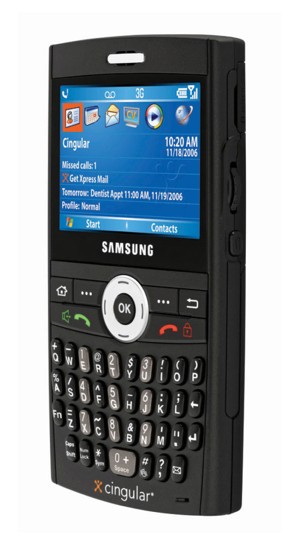

Samsung SGH-i607 BlackJack

Brand:

Samsung

Manufacturer:

Samsung Electronics

Release-Date:

November, 2006

Dimensions-width-x-height-x-depth:

59 x 113 x 11.8 millimetres
2.3 x 4.4 x 0.5 inches

Bounding-Volume:

78.7 cubecentimetres

Mass:

95 grams (battery included)

Embedded-Operating-System:

Microsoft Windows Mobile 5.0 for Smartphone AKU 3.0.2

Operating-System-Kernel:

Microsoft Windows CE 5.1.342

CPU:

Texas Instruments OMAP 1710

CPU-Clock:

220MHz

Databus-Width:

32bit

CPU-Core:

ARM926EJ-S

Number-of-Transistors:

Level-1-cache:

16KB data cache / 32KB instruction cache

Instruction-set:

ARM v5

ROM-capacity:

128MB, including 55MB user-accessible non-volatile memory

RAM-type:

SDRAM

RAM-capacity:

64MB (accessible: 28MB)

Expansion-Slots:

SDIO, microSD, TransFlash

Display:

color transflective TFT

Color-Depth:

16bit/pixel (65536 scales)

Resolution:

320 x 240 (76800 pixel)

Diagonal:

2.3` (59 millimetres)

Viewable-size:

1.9` x 1.4` (47.2 x 35.4 millimetres)

Dot-Pitch:

0.1475 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

2 (stereo)

Audio-Output:

stereo

Supported-Cellular-Networks:

GSM 850MHz, GSM 900MHz, GSM 1800MHz, GSM 1900MHz, UMTS 850MHz, UMTS 1900MHz

Supported-Data-Standards:

CSD, GPRS, EDGE, UMTS, HSDPA

Ring:

64-chord melody (polyphonic)

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sProprietary connector

Infrared-Gate:

Not supported

Bluetooth:

Bluetooth 2.0

LAN:

Not supported

Wireless-LAN:

Not supported

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Not supported

Keyboard:

QWERTY keyboard, 37 keys

Directional-Pad:

5-way directional block

Battery:

Lithium-ion, removable

Battery-Capacity:

1000mAh

Avarege-Current:

83 mA

Estimated-Battery-Life:

12 hours

Additional-Features:

GPRS Class 10 built-in antenna hands-free voice command Bluetooth stereo audio profile (A2DP)
